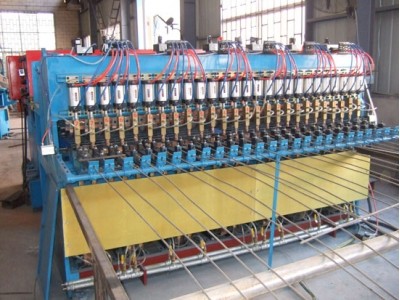

Numerical control steel bar welding net machine
GWJ series of steel mesh welding machine performance characteristics of the machine is divided into mechanical eccentric pressure and pneumatic pressure in two ways, welding range and spacing can be customized according to user requirements.

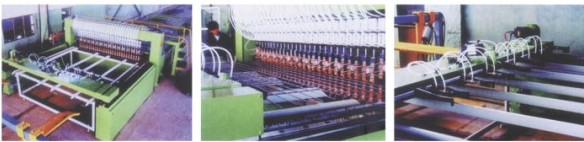

GWJSeries of steel mesh welding machine
Performance characteristics
Machine is divided into mechanical eccentric pressure and pneumatic pressure in two ways, welding amplitude and spacing can be customized according to user requirements can be welded.0.45-14mmVarious wires.
It is suitable for building, adjusting highway and railway guardrail, and breeding pen industry.
Model | Supply voltage (v ) | Enter the capacity （KVA） | Diameter wire spacing （mm） | Web width （mm） | Wire diameter （mm） | Welding speed (times/min) | Overall dimensions |
GWJ1-1250A | 380 | 200 | 12.7-101.6 | 914.4-1219.2 | Φ0.63-Φ2.0 | 20-60 | 2600*1700*1350 |
GWJ1-1850A | 380 | 315 | 25.4-152.4 | 1219.2-1828.8 | Φ1.00-Φ2.0 | 15-45 | 3350*1800*1450 |
GWJ1-1250B | 380 | 200 | 6.35-12.7 | 914.4-1219.2 | Φ0.45-Φ1.07 | 20-75 | 2350*1850*1700 |
GWJ1-1850B | 380 | 315 | 6.35-12.7 | 1219.2-1828.8 | Φ0.74-Φ1.07 | 16-48 | 3050*1900*1750 |
GWJ2-1250 | 380 | 250 | 25.4-203.2 | 914.4-1219.2 | Φ1.8 | 15-35 | 2700*2000*1250 |
GWJ2-1550 | 380 | 360 | 50.8-203.2 | 914.4-1505 | Φ1.8 | 15-30 | 3000*2000*1250 |
GWJ2-2150 | 380 | 480 | 50.8-203.2 | 914.4-2008 | Φ1.8 | 10-25 | 3500*2000*1450 |
GWJ2-2450 | 380 | 630 | 101.6-203.2 | 914.4-2150 | Φ3.0-Φ6.0 | 10-25 | 3900*2400*1650 |
GWJ2-3150 | 380 | 1280 | 101.6-203.2 | 914.4-3150 | Φ6.0-Φ12.0 | 5-40 | 18000*4600* |
Machine at a Glance
| Product | Numerical control steel bar welding net machine |
|---|---|
| Manufacturer | Cangzhou Jintongcheng Machinery Co., Ltd |
| Machine Type | Cold rolling and ribbing production equipment |
| Application | GWJ series of steel mesh welding machine performance characteristics of the machine is divided into mechanical eccentric pressure and pneumatic pressure in two ways, welding range and spacing can be customized according to user requirements. |
Technical & Buying Questions
What is this machine?
This machine is used to cold roll and rib steel bar or wire for construction reinforcement and mesh production. The exact output range depends on the selected configuration and installed tooling.
Who is this machine for?
It is designed for steel bar producers, welded mesh factories, construction material manufacturers, steel processing plants and equipment distributors.
How to choose the machine?
Choose by raw material, required finished diameter, two-rib or three-rib profile, target capacity, workshop layout, power supply and service requirements.
