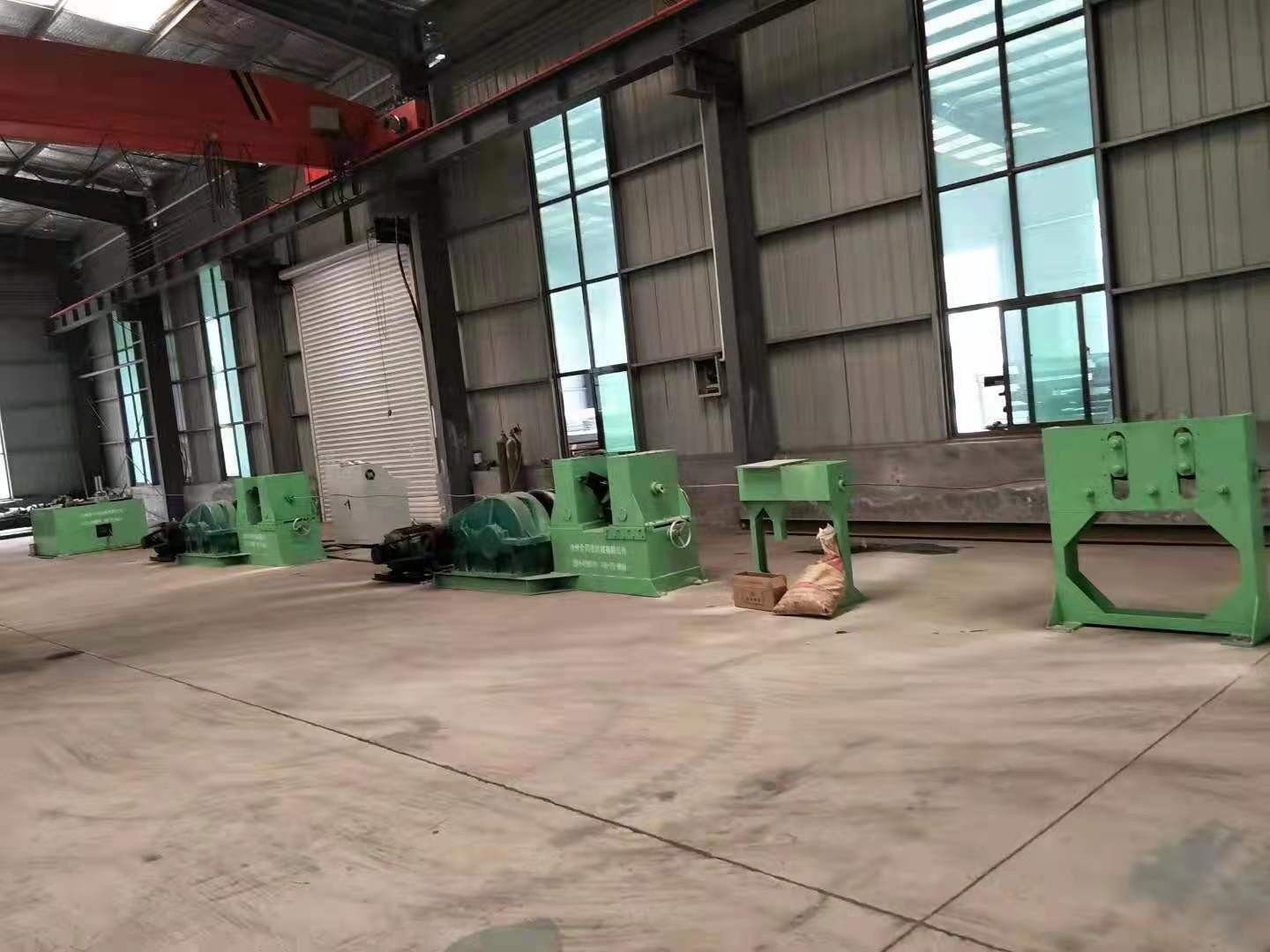

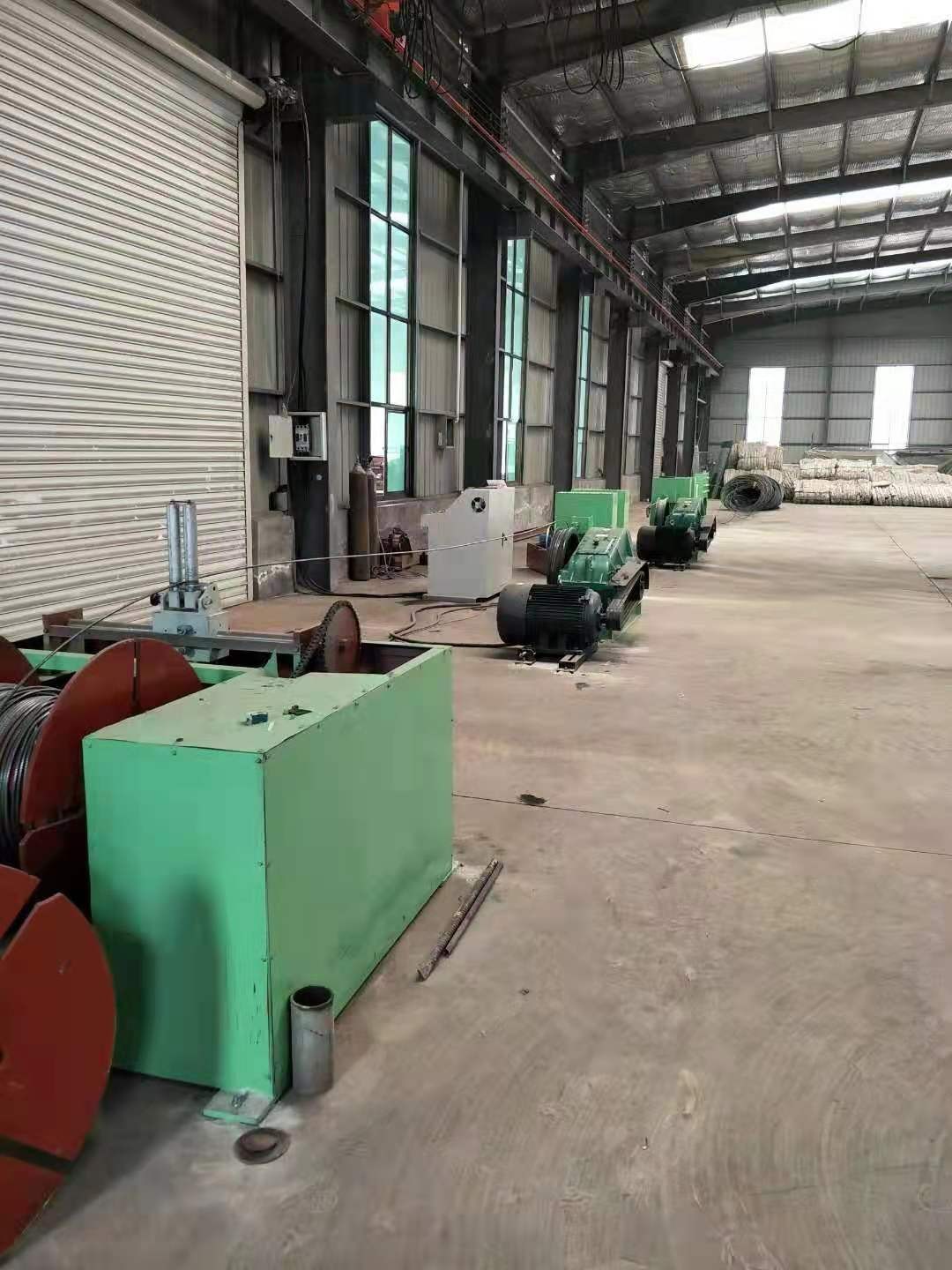

Cold roll ribbed steel bar double roll take-up unit

Performance characteristics
１.Luogang wheel is used to remove phosphorus, which is durable and has remarkable effect.
２.Worm gear and worm drive technology is adopted for the auxiliary rolling mill, with high stability and durability. The adjustment of main rolling mill adopts electric screwdown, which is convenient and efficient, and the roller adopts Zhuzhou.601Diamond brand       The hard alloy roller and the gearbox gear are made of 20CrMnTi material with carburizing treatment, which have long service life.

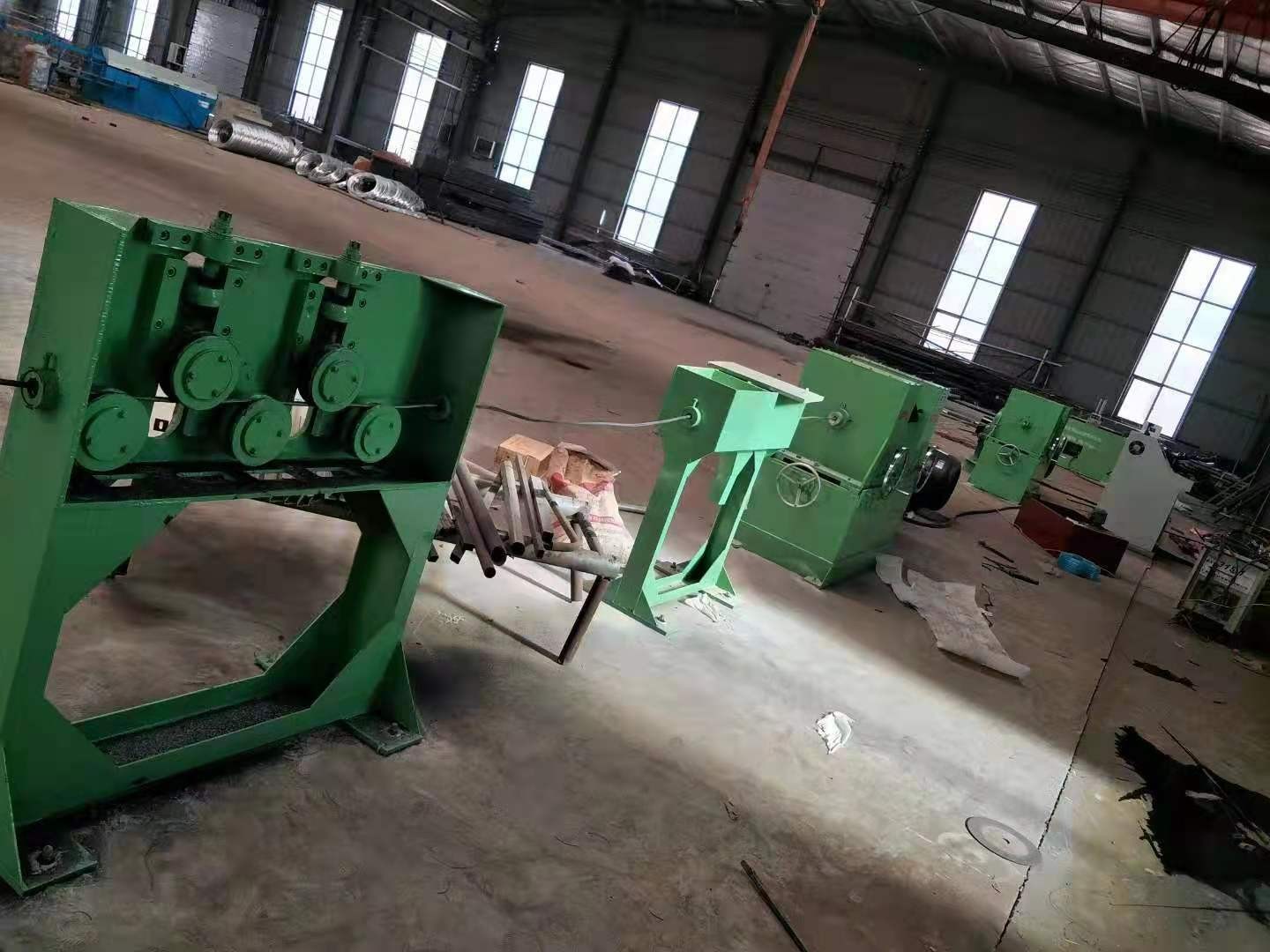

３.The straightening machine adopts the principle of multi-wheel straightening, which has good straightening effect and does not damage ribs.
４.Servo or frequency conversion mode is adopted for cutting off, with fast speed and small error.
５.The electric control system adopts imported PLC, touch screen and encoder.
６.Motor selection: Mengniu motor.

1.  Rolling process: continuous rolling

2.   Incoming diameter:6-14mm

3.   Diameter of finished product:5-13mm

4.   Line speed:120m/min

5.   Power:55+55+11Kw

6.   Take-up mode and coiling weight: spool1000-1500Kg

7.   Straightening mode: multi-wheel

8.   Cutting mode: servo flying shear

9.   Speed regulation mode: full frequency conversion

10.Installation dimensions:25*5m

11.Weight8T
