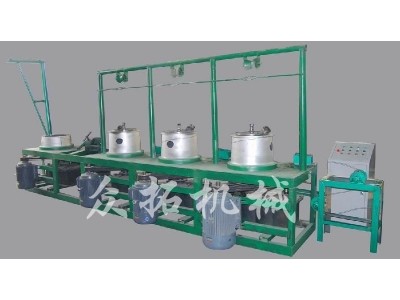

钢筋连罐拉丝机
钢筋连罐拉丝机 拉丝机技术参数 五联罐 四联罐 三联罐 二联罐 卷筒直径(mm) 550-600 550-600 550-600 550-600 最大进线(mm) 6.5 6.5 6.5 6.5 最小出线(mm) 1.9 3.5-4 4.5 5 模具(块) 5 4 3 2 线速度(m/min) 216 120-160 120-160 120-160 电机功率(KW) 39 53.5 42.5 31
钢筋连罐拉丝机
拉丝机技术参数
五联罐 四联罐 三联罐 二联罐
卷筒直径(mm) 550-600 550-600 550-600 550-600
最大进线(mm) 6.5 6.5 6.5 6.5
最小出线(mm) 1.9 3.5-4 4.5 5
模具(块) 5 4 3 2 线速度(m/min) 216 120-160 120-160 120-160
电机功率(KW) 39 53.5 42.5 31.5
润滑方式 干粉
拔出的丝主要用于织网，工程，建筑，镀锌等，还可供给水箱拔丝用。 输入电源：三相380V±10% 50Hz 最大进线 10mm 最小出线 1.9mm 线速度 90-130m/min 电机功率 15KW 960r/m 11KW 960r/min 产品分为单罐、二连罐、三连罐、四连罐、五连罐。可根据用户需求，加工定做
Machine at a Glance
| Product | 钢筋连罐拉丝机 |
|---|---|
| Manufacturer | Cangzhou Jintongcheng Machinery Co., Ltd |
| Machine Type | Cold rolling and ribbing production equipment |
| Application | 钢筋连罐拉丝机 拉丝机技术参数 五联罐 四联罐 三联罐 二联罐 卷筒直径(mm) 550-600 550-600 550-600 550-600 最大进线(mm) 6.5 6.5 6.5 6.5 最小出线(mm) 1.9 3.5-4 4.5 5 模具(块) 5 4 3 2 线速度(m/min) 216 120-160 120-160 120-160 电机功率(KW) 39 53.5 42.5 31 |
Technical & Buying Questions
What is this machine?
This machine is used to cold roll and rib steel bar or wire for construction reinforcement and mesh production. The exact output range depends on the selected configuration and installed tooling.
Who is this machine for?
It is designed for steel bar producers, welded mesh factories, construction material manufacturers, steel processing plants and equipment distributors.
How to choose the machine?
Choose by raw material, required finished diameter, two-rib or three-rib profile, target capacity, workshop layout, power supply and service requirements.
