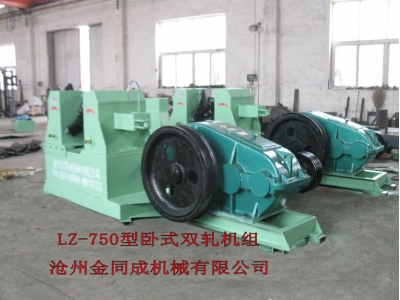

LZ-750 horizontal cold-rolled ribbed steel bar production line
Technical parameters of LZ-750 horizontal cold-rolled ribbed steel bar production line: maximum incoming diameter φ14mm, rolling specification φ5-12mm, rolling line speed 0-1.5m/min, installed capacity 45 ~ 55 KW
LZ-750 horizontal cold-rolled ribbed steel bar production line
Technical parameters:
| Maximum incoming diameter | φ14mm |
| Rolling specification | φ5-12mm |
| Rolling line speed | 0-1.5m/min |
| Installed capacity | 45~55KW |
| Speed regulation mode | Variable frequency speed regulation |
| Installation length | 12m |
| Equipment weight | 5t |
| Take-up weight | 500~1000kg |
The steel bar production line has the functions of removing phosphorus from steel bars, reducing the diameter of steel bars, and producing cold-rolled ribbed steel bars. It can be equipped with a spool steel bar take-up machine for bundling and take-up, and can also be equipped with a steel bar straightening and cutting machine for online straightening and cutting. According to the different needs of customers, the installation length of the machine is also different.
The horizontal cold-rolled ribbed steel bar production line adopts higher specifications of reducer and motor, and has stronger processing capacity. The base metal of φ14mm steel bar is fed into the production line to produce φ12mm cold-rolled ribbed steel bar, and the outgoing speed can reach 80m/min. Of course, this is not a horizontal single rolling mill can do, we need two horizontal single rolling mills in series to complete the work. In the rolling project of steel bars, there is a water tank to cool them. Cangzhou Jin Tongcheng Co., Ltd. produces all kinds of steel processing machinery. We welcome you to visit our factory and discuss cooperation. We will repay your trust with excellent products.
Machine at a Glance
| Product | LZ-750 horizontal cold-rolled ribbed steel bar production line |
|---|---|
| Manufacturer | Cangzhou Jintongcheng Machinery Co., Ltd |
| Machine Type | Cold rolling and ribbing production equipment |
| Application | Technical parameters of LZ-750 horizontal cold-rolled ribbed steel bar production line: maximum incoming diameter φ14mm, rolling specification φ5-12mm, rolling line speed 0-1.5m/min, installed capacity 45 ~ 55 KW |
Technical & Buying Questions
What is this machine?
This machine is used to cold roll and rib steel bar or wire for construction reinforcement and mesh production. The exact output range depends on the selected configuration and installed tooling.
Who is this machine for?
It is designed for steel bar producers, welded mesh factories, construction material manufacturers, steel processing plants and equipment distributors.
How to choose the machine?
Choose by raw material, required finished diameter, two-rib or three-rib profile, target capacity, workshop layout, power supply and service requirements.
